Transfer model

For the inference of transfer model, we use Bayesian Multiple Linear Regression model using Stan code.

Simple model

The likelihood is defined as:

yi∼𝒩(μi,σ2) y_i \sim \mathcal{N}(\mu_i, \sigma^2)

μi=β0+β1xi+βcat[x_cati] \mu_i = \beta_0 + \beta_1 x_i + \beta_{\text{cat}}[x\_cat_i] Where:

  • β0\beta_0 is the global intercept.
  • β1\beta_1 is the slope coefficient for the continuous variable xx.
  • βcat[x_cati]\beta_{\text{cat}}[x\_cat_i] is the specific coefficient (effect) associated with the category to which observation ii belongs.
  • σ\sigma is the standard deviation of the error term (residuals).

The model specifies weakly informative priors for its parameters to regularize the inferences without overly constraining the data:

  • Intercept: β0∼𝒩(0,10)\beta_0 \sim \mathcal{N}(0, 10)
  • Continuous Slope: β1∼𝒩(0,10)\beta_1 \sim \mathcal{N}(0, 10)
  • Categorical Coefficients: βcat∼𝒩(0,10)\beta_{\text{cat}} \sim \mathcal{N}(0, 10) for each of the KK categories.
  • Error Standard Deviation: σ∼Half-Cauchy(0,5)\sigma \sim \text{Half-Cauchy}(0, 5). Because σ\sigma is constrained to be strictly positive (real<lower=0> sigma;) , the Cauchy prior automatically becomes a truncated Half-Cauchy distribution.

Based on the structure of the likelihood function, this model makes the following classical linear regression assumptions:

  • Linearity: The relationship between the continuous predictor xx and the mean of the response yy is strictly linear.
  • Additivity (No Interactions): The effect of the continuous variable (xx) and the categorical variable (xcatx_{cat}) are purely additive. The slopes are assumed to be identical across all categories; only the intercepts vary (parallel lines model).
  • Normality of Errors: The residuals (the differences between observed and predicted values) are normally distributed.
  • Homoscedasticity (Constant Variance): The standard deviation of the error term, σ\sigma, is assumed to be constant across all values of xx and across all KK categories.
  • Independence: Each observation ii is conditionally independent given the parameters.

Direct fix-point model of Soil-Organism

Inference for Vegetation and Earthworm

For both species, we assumed a direct link:

log10(Cinternal)=β0+β1log10(Csoil) \log_{10}\left( C_{internal} \right) = \beta_0 + \beta_1 \log_{10}\left( C_{soil} \right)

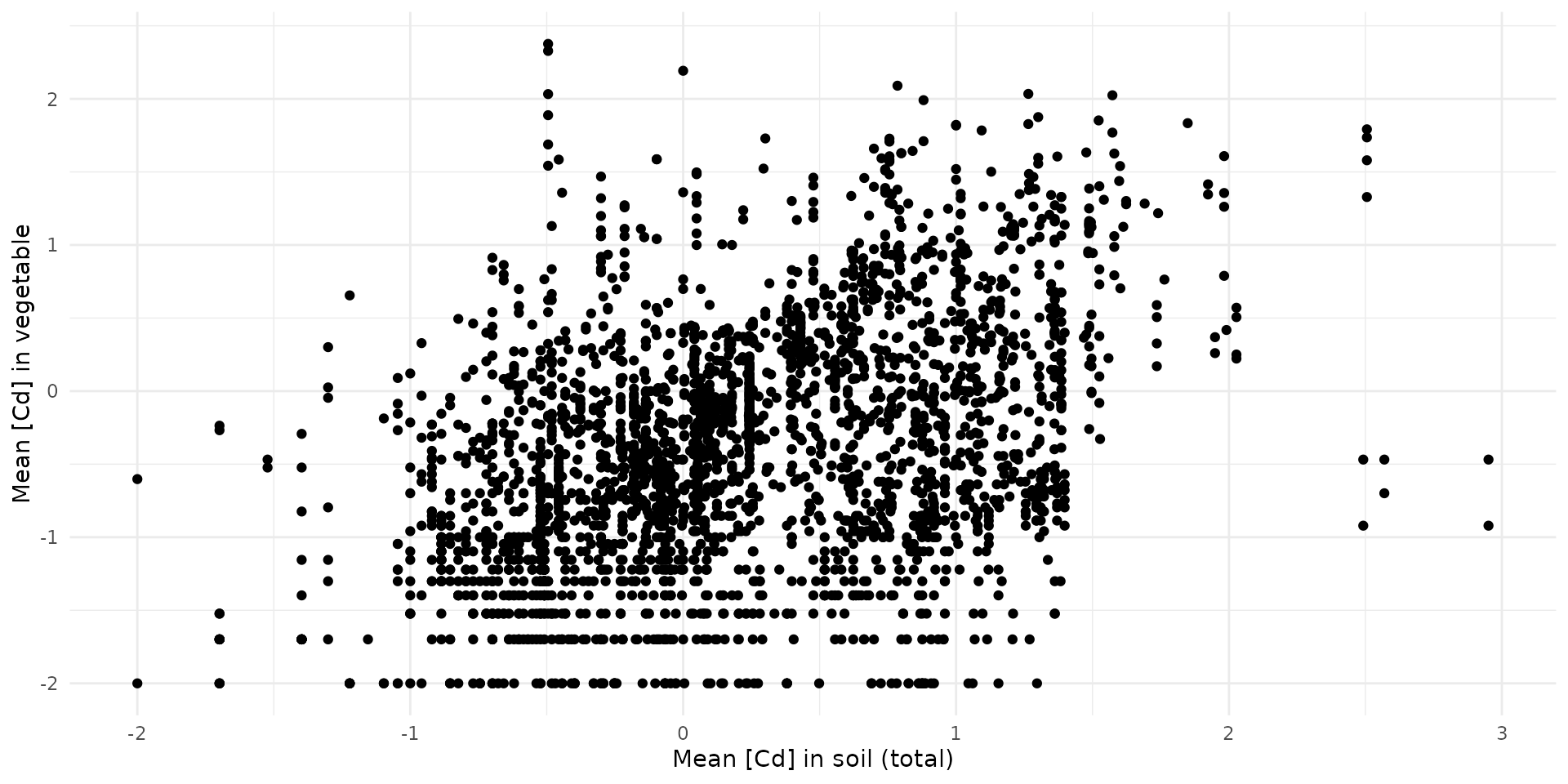

Vegetation

stan_data = list(
  N = nrow(bappet_cd),
  x = bappet_cd$log10_media_mean,
  y = bappet_cd$log10_plant_mean,
  M = 100,
  x_sim = seq(-2, 3, length.out=100)
)
# fit_simple_veg_cd <- calibrate_simple(stan_data, chains=4, warmup=500, iter=1000)
# saveRDS(fit_simple_veg_cd, file="raw_data/fit_simple_veg_cd.rds")
fit_simple_veg_cd <- load_safe("raw_data/fit_simple_veg_cd.rds")

arr_sim <- rstan::extract(fit_simple_veg_cd, "y_sim")[[1]]
quants <- c(0.025, 0.5, 0.975)
q_mat <- apply(arr_sim, 2, quantile, probs = quants)
df_sim <- q_mat %>%
  t() %>%
  as.data.frame() %>%
  mutate(
    var_id = 1:n(),
    x_sim = stan_data$x_sim
  )

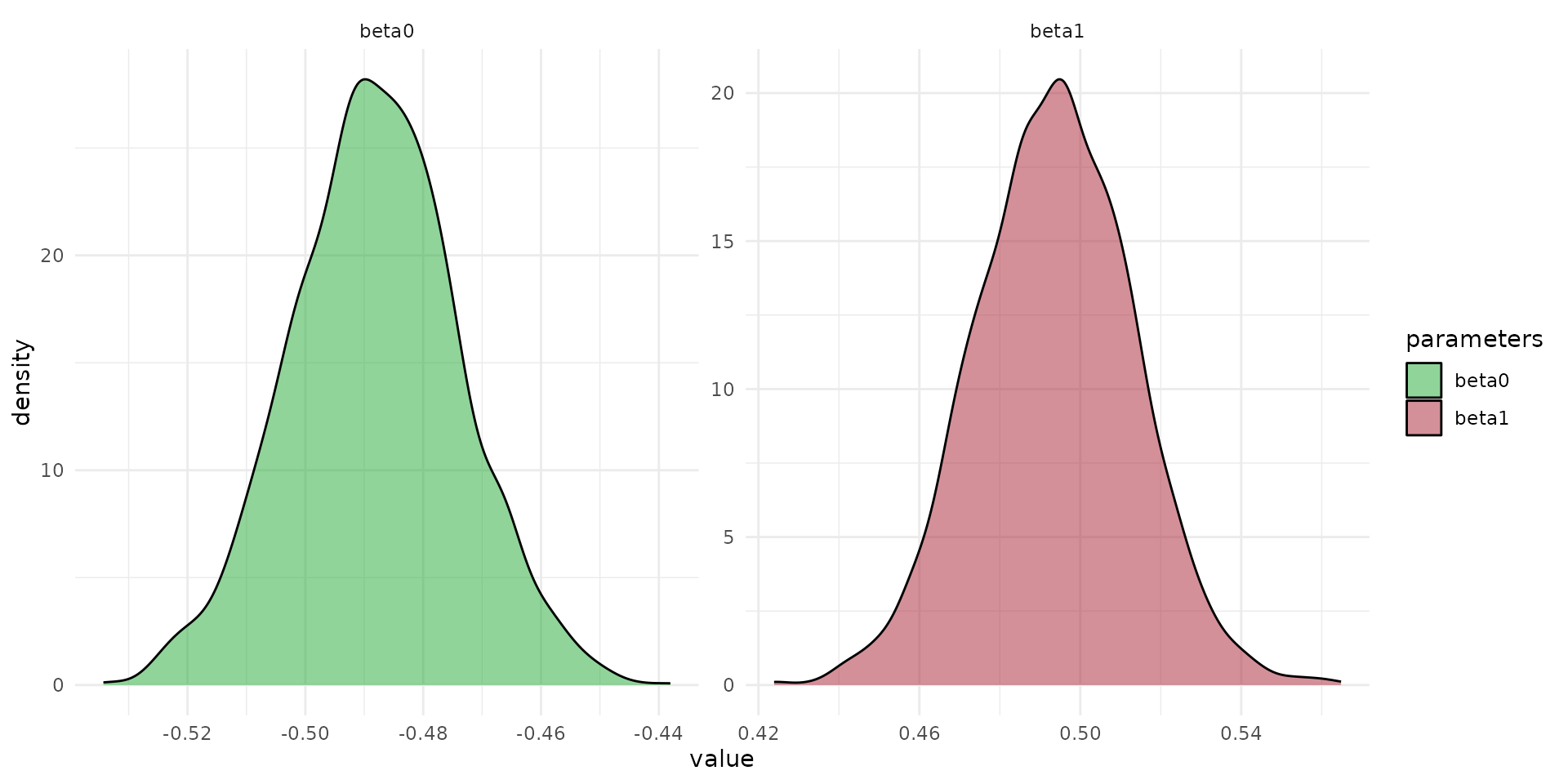

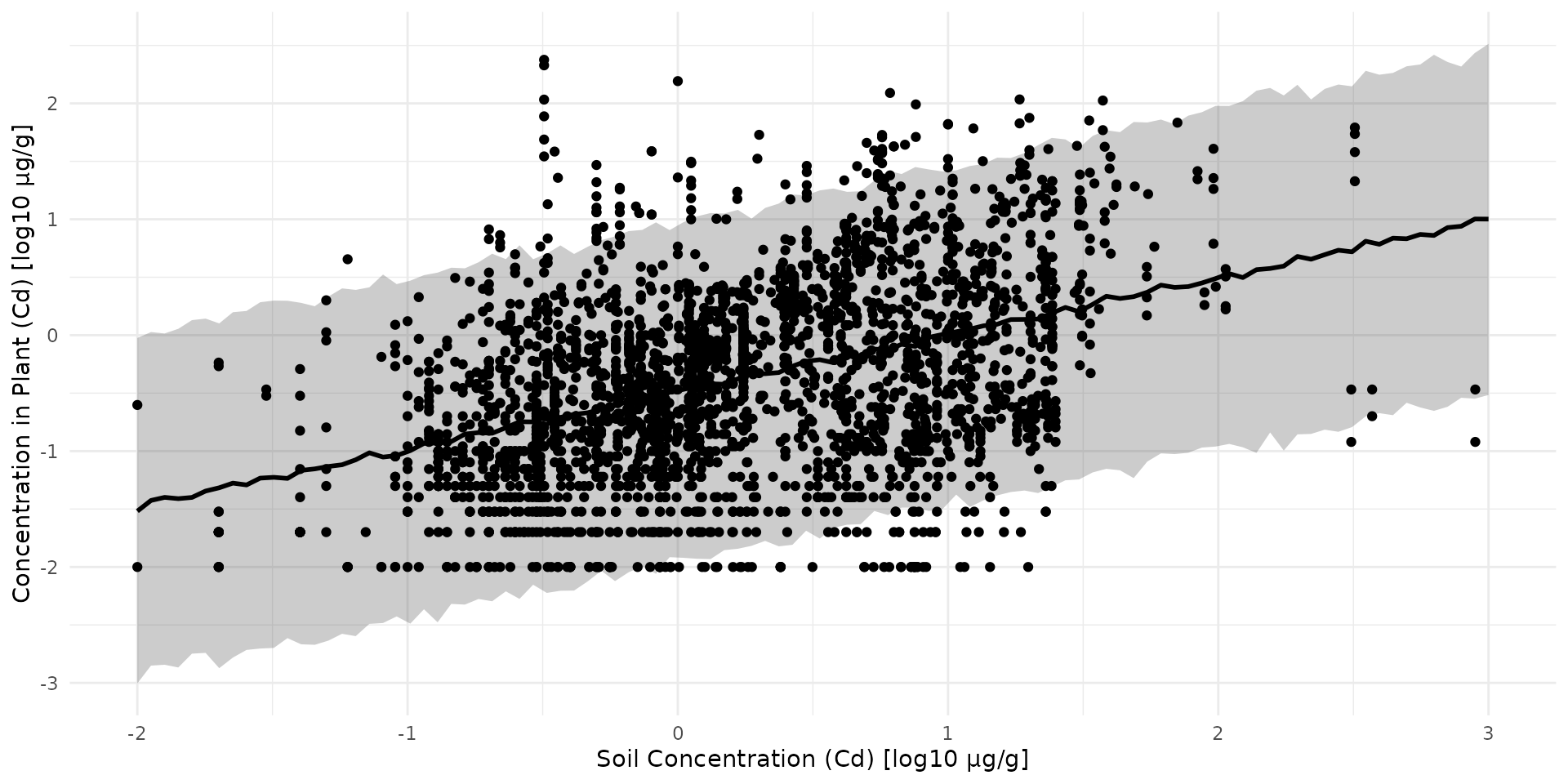

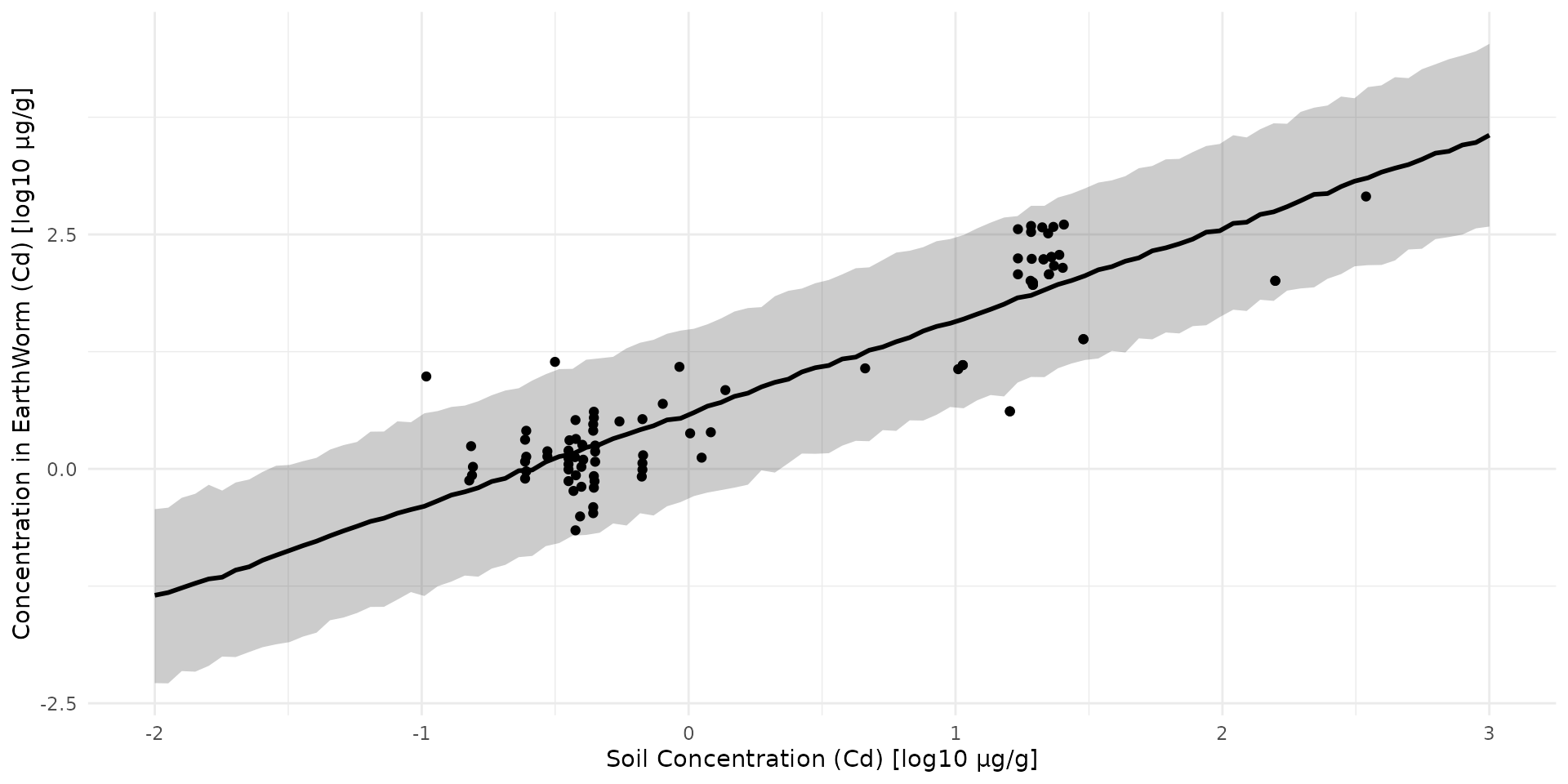

Earthworm

data("earthworm_cd")

stan_data = list(
  N = nrow(earthworm_cd),
  x = earthworm_cd$log10_cd_soil,
  y = earthworm_cd$log10_cd_worm,
  M = 100,
  x_sim = seq(-2, 3, length.out=100)
)
# fit_simple_worm_cd <- calibrate_simple(stan_data, chains=4, warmup=500, iter=1000)
# saveRDS(fit_simple_worm_cd, file="raw_data/fit_simple_worm_cd.rds")
fit_simple_worm_cd <- load_safe("raw_data/fit_simple_worm_cd.rds")

arr_sim <- rstan::extract(fit_simple_worm_cd, "y_sim")[[1]]
quants <- c(0.025, 0.5, 0.975)
q_mat <- apply(arr_sim, 2, quantile, probs = quants)
df_sim <- q_mat %>%
  t() %>%
  as.data.frame() %>%
  mutate(
    var_id = 1:n(),
    x_sim = stan_data$x_sim
  )

Inference for Micro-Mammals

data(sf_micromammals)
# ADD LOG_10 COLUMNS
sf_train <- sf_micromammals |>
  dplyr::mutate(
    log10_cd_S = log10(cd_S),
    log10_cd_WB_FW = log10(cd_WB_FW))
# ADD GROUP HERBIVOE vs INSECTIVORE
lookup_table = data.frame(
    group = c('shrew', 'mouse', 'vole'),
    food = c('insectivore', 'herbivore', 'herbivore'),
    food_cat_num = c(2,1,1))
sf_train = dplyr::left_join(sf_train, lookup_table, by='group')
stan_data = list(
  N = nrow(sf_train),
  K = 2,
  x = sf_train$log10_cd_S,
  y = sf_train$log10_cd_WB_FW,
  x_cat = sf_train$food_cat_num,
  M = 100,
  x_sim = seq(min(sf_train$log10_cd_S), max(sf_train$log10_cd_S), length.out=100)
)
# fit_direct <- calibrate_direct(stan_data, chains=4, warmup=500, iter=1000)
# saveRDS(fit_direct, file="raw_data/fit_direct_cd.rds")
fit_direct <- load_safe("raw_data/fit_direct_cd.rds")

Equation parameters

The equation of the direct model is given by:

log10(Cinternal)=β0+β1log10(Csoil)+betacatlog10(Csoil) \log_{10}\left( C_{internal} \right) = \beta_0 + \beta_1 \log_{10}\left( C_{soil} \right) + beta_{cat} \log_{10}\left( C_{soil} \right)

fit_pars <- rstan::extract(fit_direct, c("beta0", "beta1", "beta_cat"))

df_pars <- dplyr::bind_rows(list(
  data.frame(value=fit_pars$beta0, par="beta0"),
  data.frame(value=fit_pars$beta1, par="beta1"),
  data.frame(value=fit_pars$beta_cat[,1], par="beta_herbivore"),
  data.frame(value=fit_pars$beta_cat[,2], par="beta_insectivore")
))

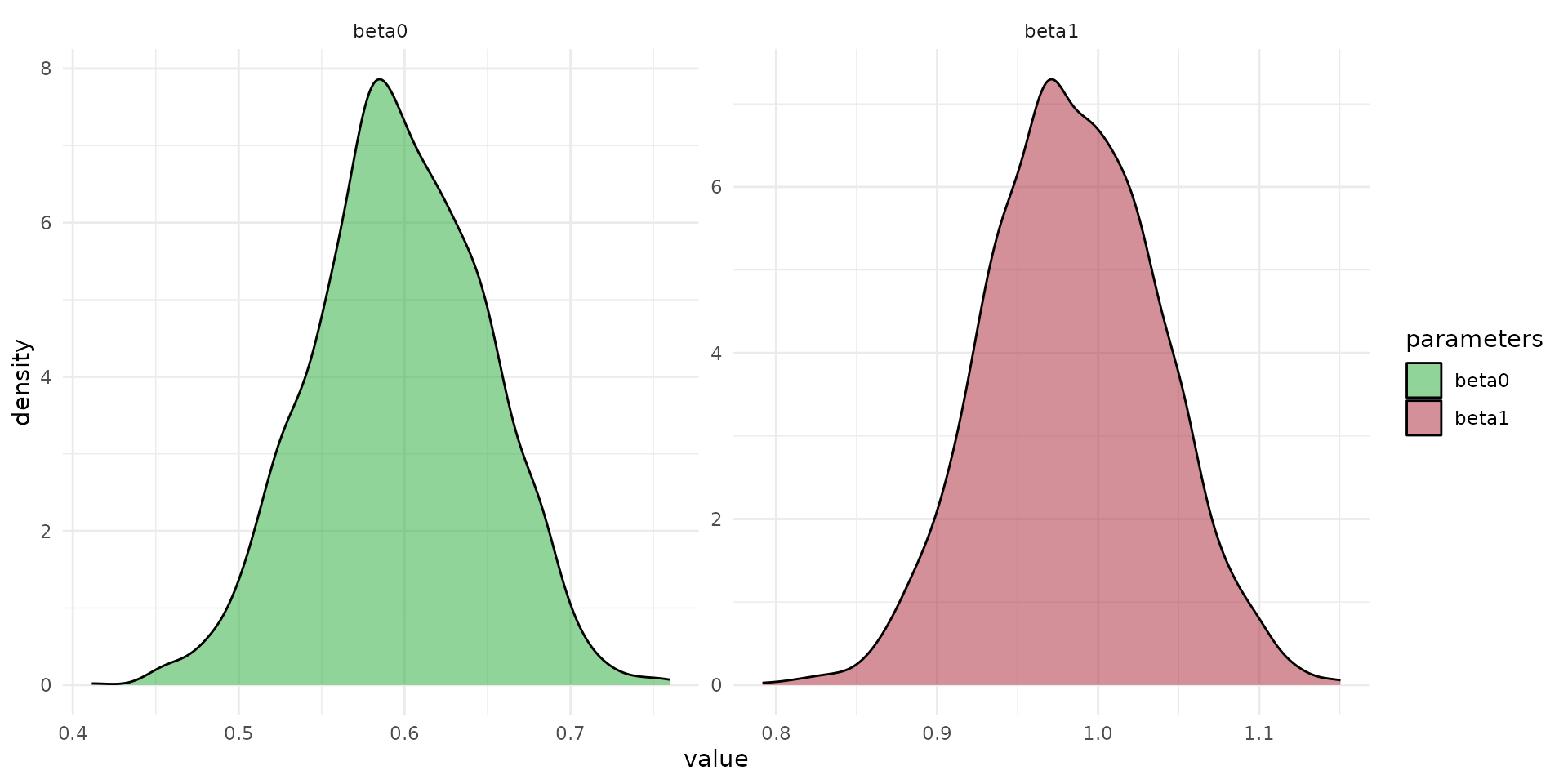

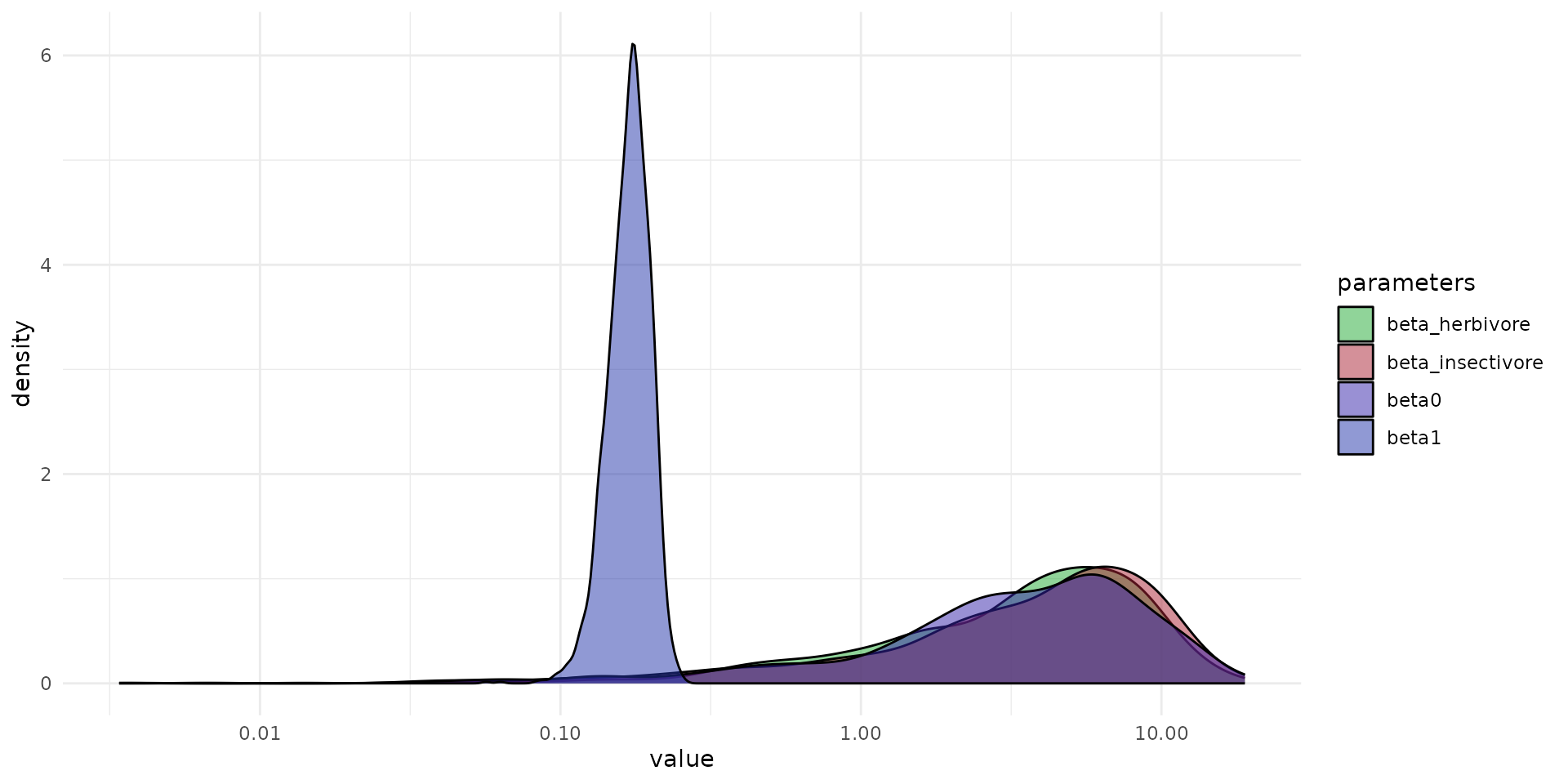

ggplot(data=df_pars) +
  theme_minimal() +
  scale_x_log10() +
  scale_fill_manual(
    name="parameters",
    values=c("#22aa33", "#aa2233","#3322aa", "#2233aa")) +
  geom_density(aes(value, fill=par), alpha=0.5)
#> Warning in transformation$transform(x): NaNs produced
#> Warning in scale_x_log10(): log-10 transformation introduced
#> infinite values.
#> Warning: Removed 3131 rows containing non-finite outside the scale range
#> (`stat_density()`).

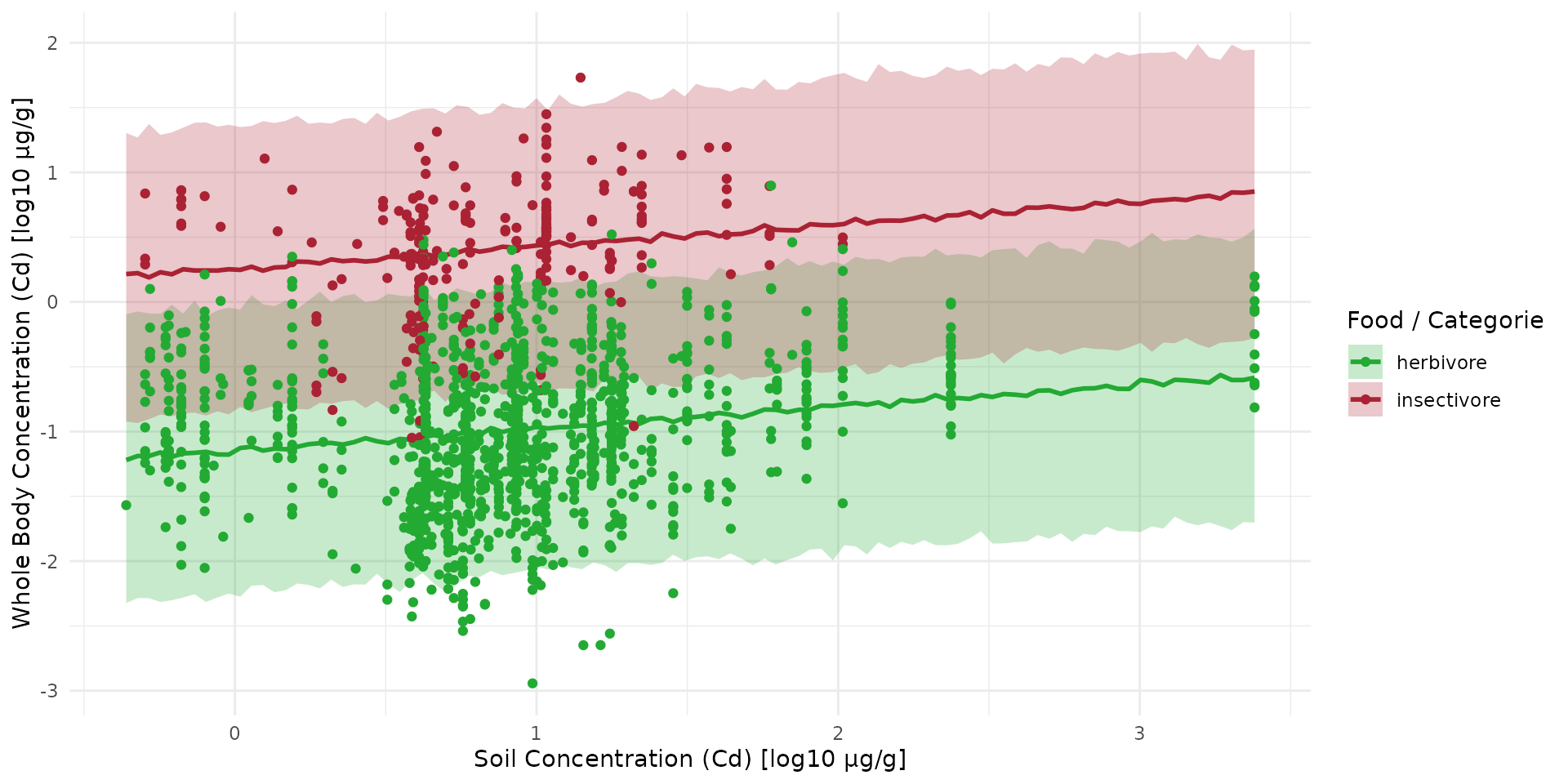

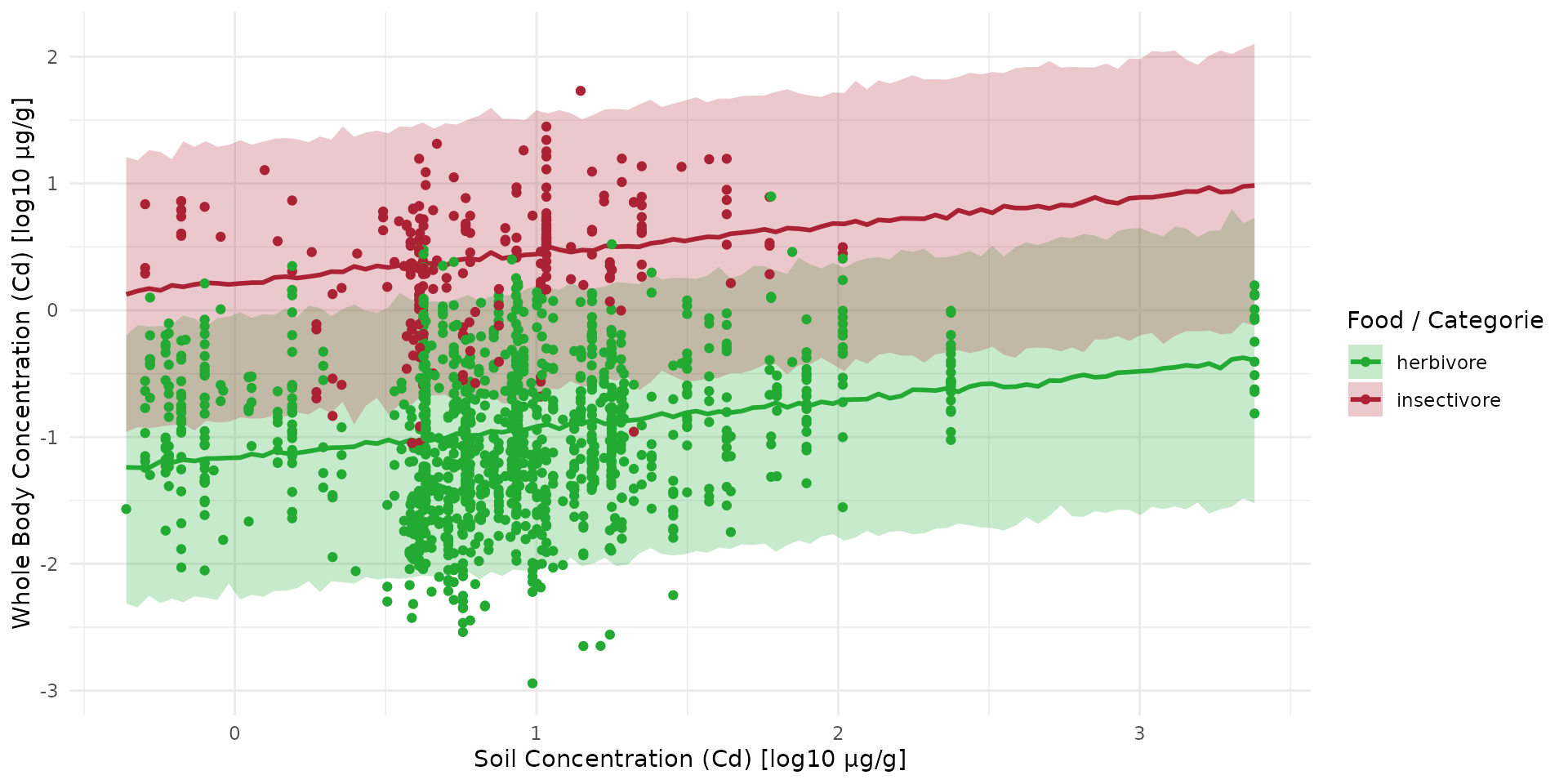

Observation vs Prediction

arr_sim <- rstan::extract(fit_direct, "y_sim")[[1]]

Predictive Test

The Cd concentration in body, dry weight, µg.g-1, is calculated from dat*a measured using equation given in Veltman et al. 2007 in Environmental Toxicology and Chemistry:

  • voles: 10.8(0.054×Cdliver+0.013×Cdkidney)\frac{1}{0.8} \left( 0.054 \times \text{Cd}_\text{liver} + 0.013 \times \text{Cd}_\text{kidney} \right)
  • shrews: 10.8(0.07×Cdliver+0.019×Cdkidney)\frac{1}{0.8} \left( 0.07 \times \text{Cd}_\text{liver} + 0.019 \times\text{Cd}_\text{kidney} \right)

Then, the Cd concentration in body, fresh weight, µg.g-1, is calculated from data measured using the Dry/fresh ratio: $Wfresh = Wdry $

# ADD GROUP HERBIVORE vs INSECTIVORE
lookup_table = data.frame(
    Species = c('APSY', 'CRRU', 'SOMI'),
    group = c('vole', 'shrew', 'shrew'),
    coef_WB_CD_liver = c(0.054, 0.07, 0.07),
    coef_WB_CD_kidney = c(0.013, 0.019, 0.019),
    food = c('herbivore', 'insectivore', 'insectivore'),
    food_cat_num = c(2,1,1))

sf_test = dplyr::left_join(sf_metaleurop_2025, lookup_table, by='Species') |>
  dplyr::mutate(cd_WB_DW = 1/0.8*(coef_WB_CD_liver*CdInLiver + coef_WB_CD_kidney*CdInKidneys)) |>
  dplyr::mutate(cd_WB_FW = cd_WB_DW*1/4) |>
  dplyr::mutate(log10_cd_WB_FW = log10(cd_WB_FW))

Collect corresponding soil value

sf_test <- st_transform(sf_test, crs(ground_cd))

centroids <- st_centroid(sf_test)
#> Warning: st_centroid assumes attributes are constant over geometries
val_centroid <- terra::extract(ground_cd, centroids)
val_mean_trapline <- terra::extract(ground_cd, vect(sf_test), fun = mean, na.rm = TRUE)

sf_test$log10_cd_S_centroid <- val_centroid[, 2]
sf_test$log10_cd_S_meanLine <- val_mean_trapline[, 2]

Big points are

#> Warning: Removed 7 rows containing missing values or values outside the scale range
#> (`geom_point()`).

Direct dist-buffer model of Soil-Organism

For moving organism as micro-mammals, the idea here is to consider a buffer around the traplines. Let 100m first.

Collect Buffer mean Value

sf_train_b <- st_transform(sf_metaleurop_2010, crs(ground_cd))
sf_train_b100 <- st_buffer(sf_train_b, dist = 100)

centroids <- st_centroid(sf_train_b)
#> Warning: st_centroid assumes attributes are constant over geometries
val_centroid <- terra::extract(ground_cd, centroids)
val_mean_trapline <- terra::extract(ground_cd, vect(sf_train_b), fun = mean, na.rm = TRUE)
val_mean_b100 <- terra::extract(ground_cd, vect(sf_train_b100), fun = mean,  na.rm = TRUE)

sf_train_b100$log10_cd_S_centroid <- val_centroid[, 2]
sf_train_b100$log10_cd_S_meanLine <- val_mean_trapline[, 2]
sf_train_b100$log10_cd_S_meanb100 <- val_mean_b100[, 2]

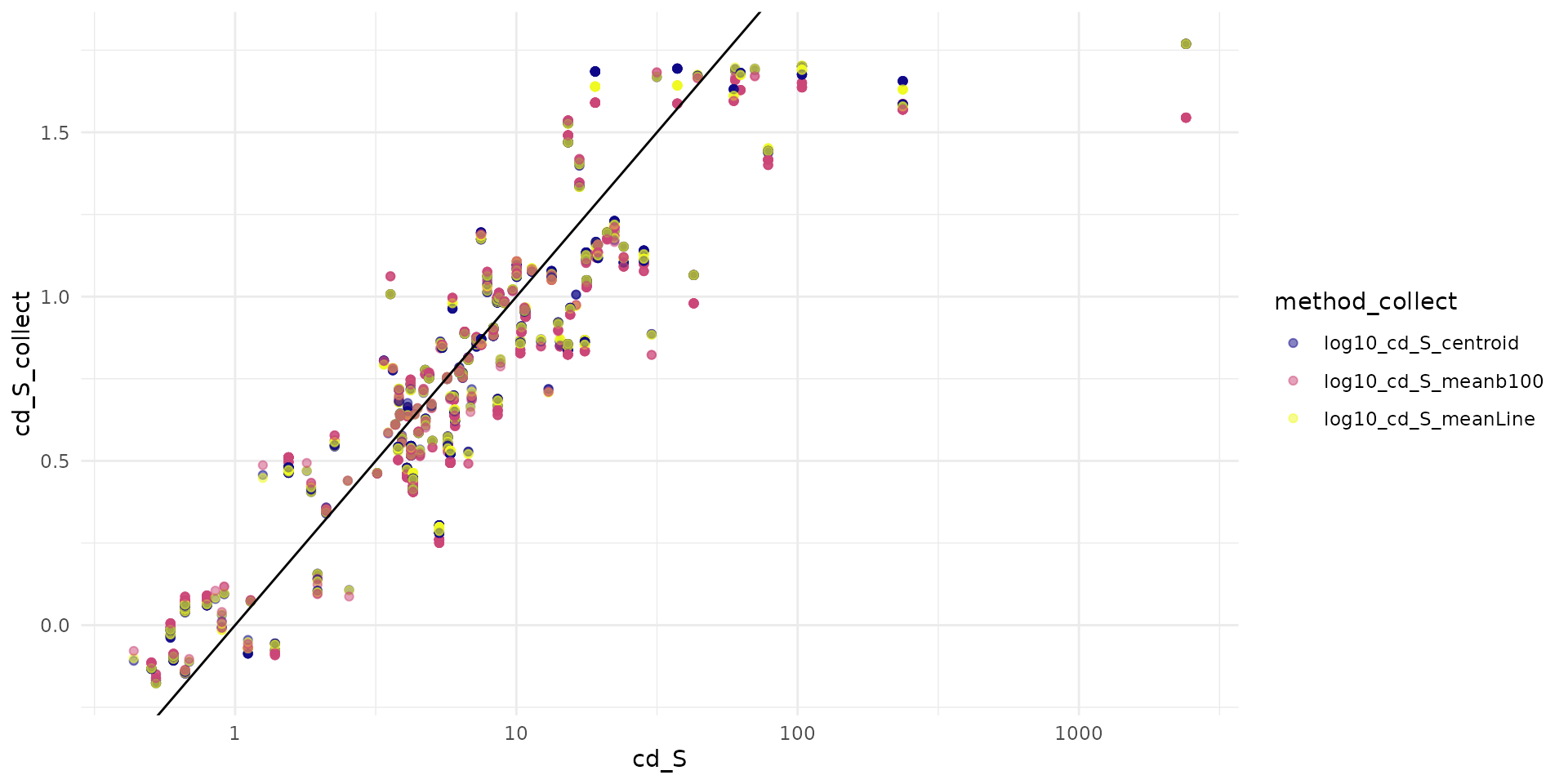

Compute inference

d00 = sf_train_b100 %>%
  dplyr::mutate(
    log10_cd_S = log10(cd_S),
    log10_cd_WB_FW = log10(cd_WB_FW),
  )
lookup_table = data.frame(
    group = c('shrew', 'mouse', 'vole'),
    food = c('insectivore', 'herbivore', 'herbivore'),
    food_cat_num = c(2,1,1))
d = dplyr::left_join(d00, lookup_table, by='group')

stan_data = list(
  N = nrow(d),
  K = 2,
  x = d$log10_cd_S_meanb100,
  y = d$log10_cd_WB_FW,
  x_cat = d$food_cat_num,
  M = 100,
  x_sim = seq(min(d$log10_cd_S), max(d$log10_cd_S), length.out=100)
)
# fit_direct_b100 <- calibrate_direct(stan_data, chains=4, warmup=500, iter=1000)
# saveRDS(fit_direct_b100, file="raw_data/fit_direct_b100_cd.rds")
fit_direct_b100 <- load_safe("raw_data/fit_direct_b100_cd.rds")
arr_sim_b100 <- rstan::extract(fit_direct_b100, "y_sim")[[1]]

Compare prediction with new data

sf_full <- data.frame(
  food =           c(sf_train$food, sf_test$food),
  set =            c(rep("train", nrow(sf_train)), rep("test", nrow(sf_test))),
  log10_cd_S =     c(sf_train$log10_cd_S, sf_test$log10_cd_S_meanLine),
  log10_cd_WB_FW = c(sf_train$log10_cd_WB_FW, sf_test$log10_cd_WB_FW)
)
sf_full$set <- factor(sf_full$set, levels = c("train", "test"))

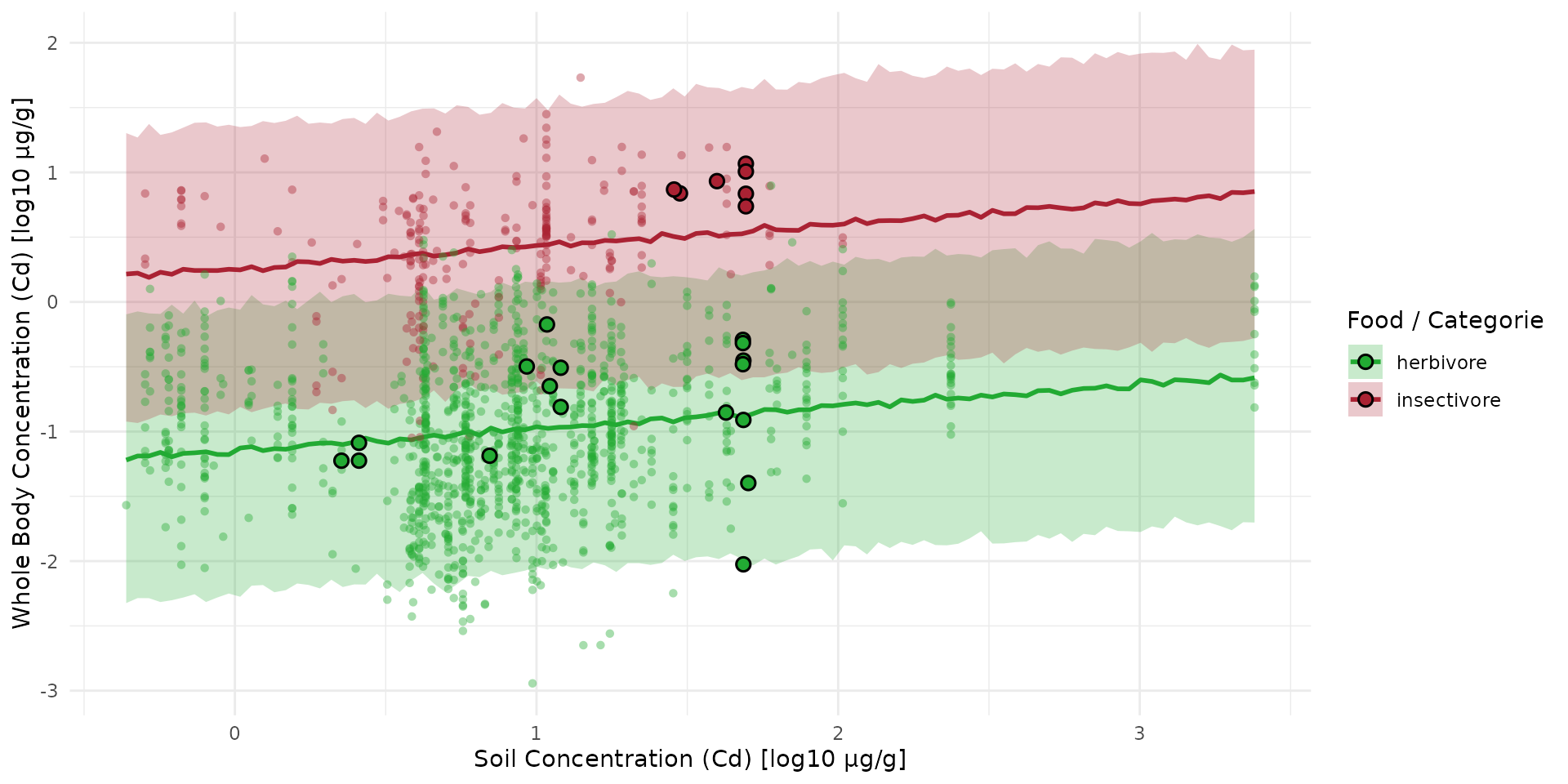

plt_full <- plt_sim +
  geom_point(
    data = subset(sf_full, set == "train"),
    aes(x = log10_cd_S, y = log10_cd_WB_FW, color = food),
    shape = 16, alpha = 0.4, size = 1.5
  ) +
  geom_point(
    data = subset(sf_full, set == "test"),
    aes(x = log10_cd_S, y = log10_cd_WB_FW, fill = food),
    shape = 21, color = "black", stroke = 0.8, size = 2.5
  )

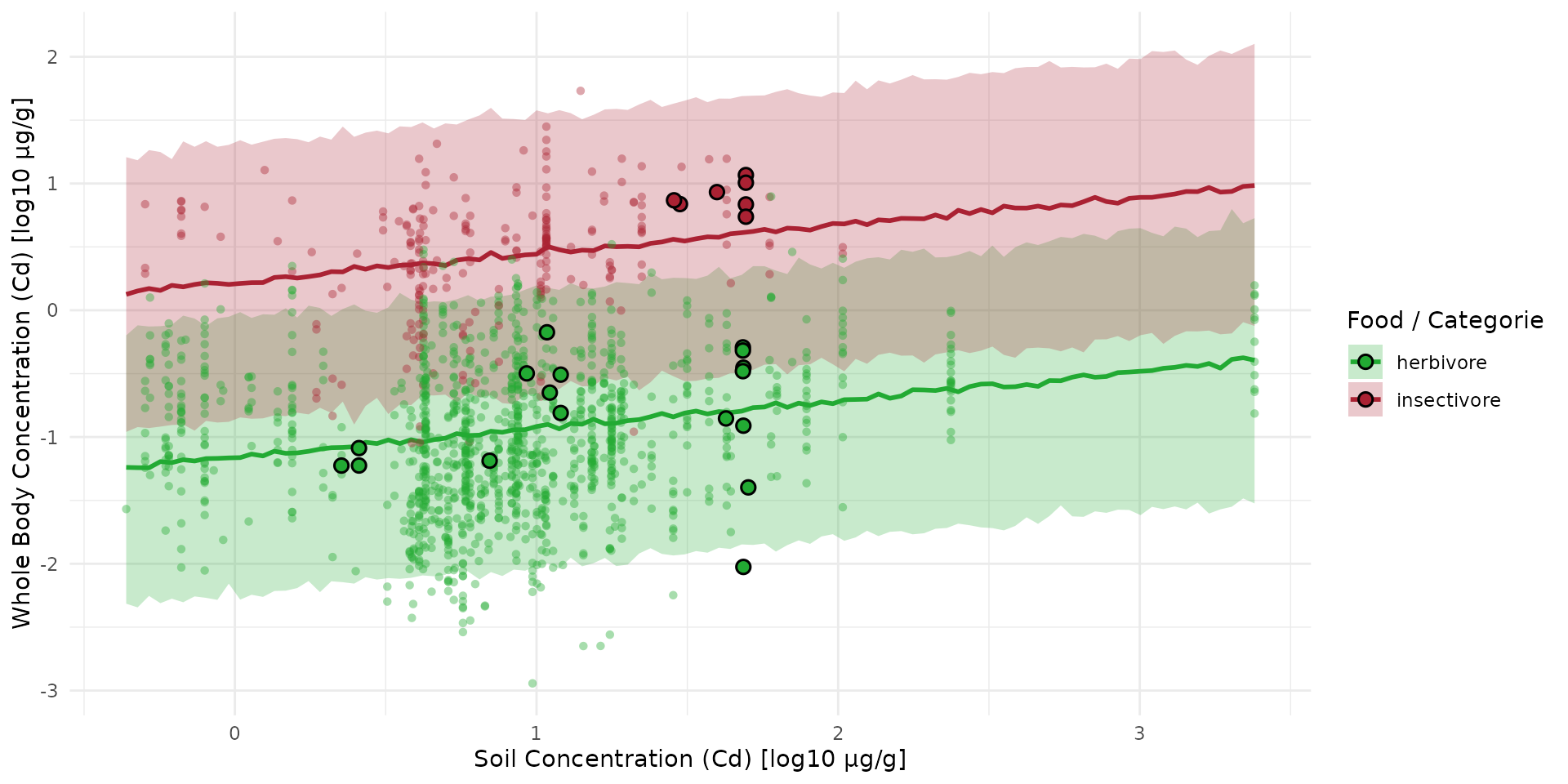

plt_full
#> Warning: Removed 7 rows containing missing values or values outside the scale range
#> (`geom_point()`).

Mapping

Here we are going to compute the map of predicted concentration over the landscape.

Let first recapture the value of median:

fit_pars <- rstan::extract(fit_direct_b100, c("beta0", "beta1", "beta_cat"))

df_pars <- dplyr::bind_rows(list(
  data.frame(value=fit_pars$beta0, par="beta0"),
  data.frame(value=fit_pars$beta1, par="beta1"),
  data.frame(value=fit_pars$beta_cat[,1], par="beta_herbivore"),
  data.frame(value=fit_pars$beta_cat[,2], par="beta_insectivore")
))

dp_q50 <- df_pars %>%
  dplyr::group_by(par) %>%
  dplyr::summarise(median_value = median(value, na.rm=TRUE))

ls_q50 <- setNames(as.list(dp_q50$median_value), dp_q50$par)
names_hab = c("soil", "herbivore", "insectivore")
list_habitat <- lapply(names_hab, function(i) ground_cd)
stack_habitat <- raster_stack(list_habitat, names_hab)
trophic_df <- trophic() |>
  add_link("soil", "herbivore") |>
  add_link("soil", "insectivore")
spcmdl_direct <- spacemodel(stack_habitat, trophic_df)

direct_kernels <- list(soil = NA, herbivore = NA, insectivore = NA)

direct_intakes <- intake(spcmdl_direct,
  "soil -> herbivore"       = ~ ls_q50$beta0 + ls_q50$beta1*x + ls_q50$beta_herbivore*x,
  "soil -> insectivore"     = ~ ls_q50$beta0 + ls_q50$beta1*x + ls_q50$beta_insectivore*x,
  default = 1, # for all other default is 1
  normalize = FALSE # TRUE would weight every link to sum at 1
)

spcmdl_direct_risk <- transfer(
  spcmdl_direct,
  direct_kernels,
  direct_intakes,
  exposure_weighting="potential")

Direct kernel-buffer model of Soil-Organism

data("ocsge_species_dict")
